Natural Arch Found on the Moon
- Natural Arch found on the Moon - this page
- Possible Natural Arch on Mars
- Imagined Natural Arches in Space Art
In September, 2010, NASA reported that the Lunar Reconnaissance Orbiter Camera (LROC) revealed a natural
bridge on the Moon. Natural bridges on the Earth are typically the result of water erosion, which is not
a likely scenario on the Moon. So how did this natural bridge form? The most likely answer is dual
collapse into a lava tube. From the Apollo era, from the Japanese Selenological and Engineering Explorer
(SELENE), and from other LROC images, it is known that lava tubes did form in the Moon's ancient past.
SELENE and LROC images have raised the tantalizing prospects that lava tubes remain intact to this day.
However this bridge did not form in mare (basalt), but rather in impact melt from King crater. More
astonishingly, the same LROC image revealed two natural bridges — not just one.
| The bridge is about 7 meters (23 feet) wide on top and perhaps 9 meters (30 feet) on the bottom side, and would be a 20-meter (66-foot) walk to cross from one side to the other. Credit: NASA/Goddard/ASU. |
How do we know for sure that this feature is truly a bridge? Look closely at the west pit (left side) and
you can see a little crescent of light on its floor. That patch of light came from the east, under the
bridge. In another lower resolution image (see inset), you can see light passed under the bridge from the
west. So there must be a passage. How did this oddity form? The impact melt deposit on the north rim of
King crater is over 15 km across and was emplaced in a matter of minutes as the crater grew to its final
configuration.

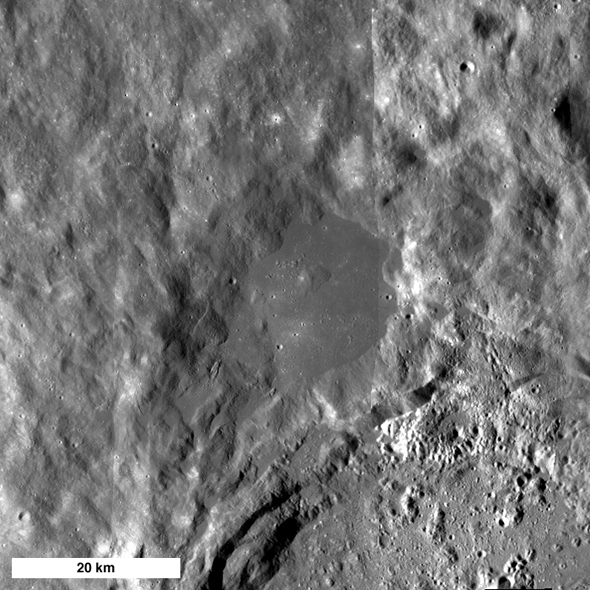

| A large (17 km east to west), smooth impact melt "pond" on the northwest rim of King crater (72 km diameter). Credit: NASA/Goddard/ASU |
The impact melt that was thrown out of the crater pooled on the newly deposited ejecta and must be many
tens of meters thick, allowing its interior to stay molten for a long time. As the local terrain
readjusted after the shock of the impact, the substrate of this massive pool of melt was jostled to some
degree. Local pressures built up and the melt moved around under a deforming crust. You can see that the
south end of the bridge extends from a small local rise, shaped something like a blister. Perhaps some
melt was locally pushed up forming the rise, then the magma found a path to flow away, leaving a void
which the crusted roof partially collapsed. Right now it is not known for certain the details of how the
bridge formed, but the LROC team is processing stereo images into topographic maps to aid scientists in
determining exactly what took place on this fascinating melt sheet. There are actually six LROC images in
which the bridge can be found under varying lighting (M103725084L, M103732241L, M106088433L, M113168034R,
M123785162L, M123791947L). Why so many images? The melt sheet north of King crater is a region of
interest — a high priority for LROC coverage. As the pair of images below vividly illustrate,
having a set of images of the same area under varying lighting allows scientists to more confidently
interpret the local geology and thus better prepare for future exploration.

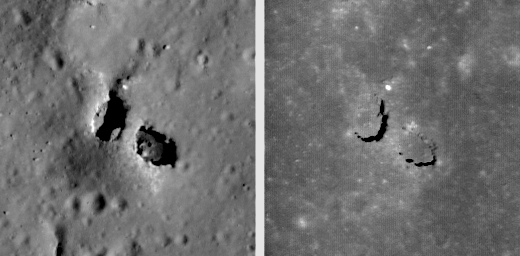

| Left shows the bridge when the Sun is 42 degrees above the horizon and the right is the same area when the Sun is 80 degrees above the horizon (near noon). M113168034R on the left, M123791947L on the right, both are 128 meters across, north is up. Credit: NASA/Goddard/ASU |
Explore the entire LROC image
and investigate the variety of geologic features in the King crater melt sheet. Can you find the second
natural bridge in the full image frame? (Hint - it's fairly close to the one shown above and about half
its size.) If you find it, please let us know, as we here at NABS have not found it.
